Description
A UNIQUE STEREO CHORUS

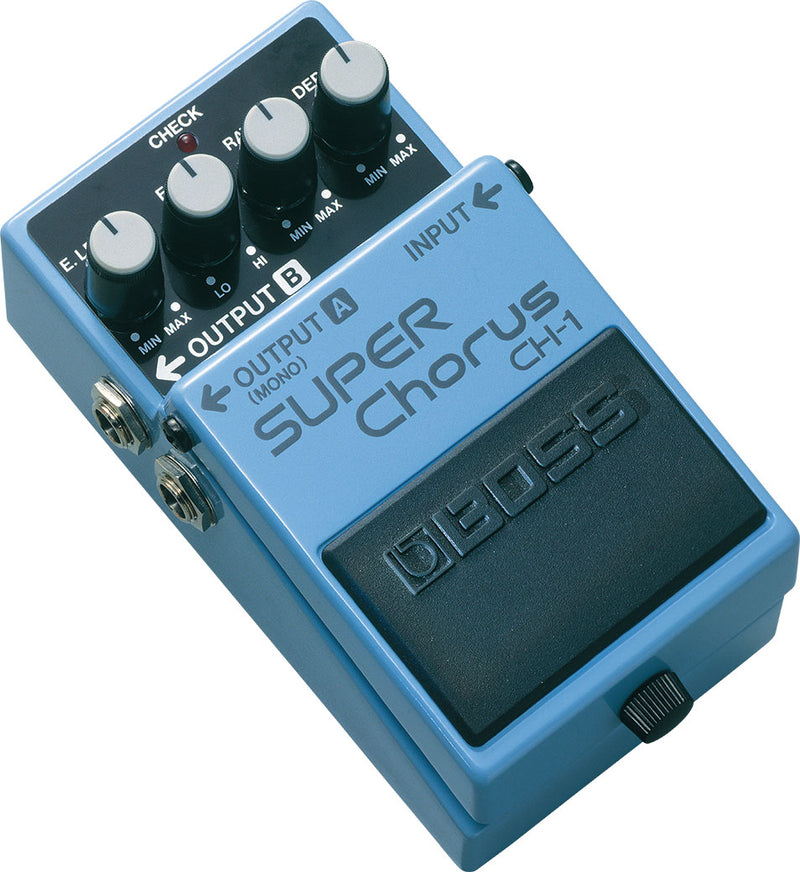

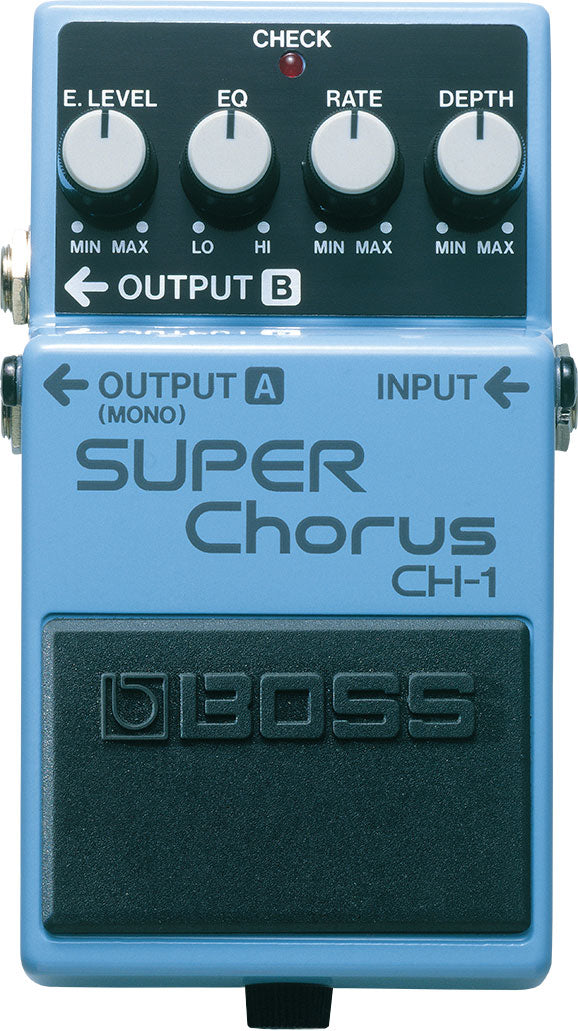

The CH-1 Super Chorus pedal delivers a clean classic chorus sound with crystal-clear highs and a unique stereo effect, variable between left and right speakers.
Nominal Input Level -20 dBu Input Impedance 1 M ohm Nominal Output Level -20 dBu Output Impedance 1 k ohm Recommended Load Impedance 10 k ohms or greater Bypass Buffered bypass Controls DEPTH knob
RATE knob
EQ knob
E.LEVEL knob
Pedal switch Indicator CHECK indicator (Used for indication of check battery) Connectors INPUT jack: 1/4-inch phone type
OUTPUT A/B jack: 1/4-inch phone type
DC IN jack Power Supply Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately) Current Draw 25 mA Expected battery life under continuous use Carbon: Approx. 11.5 hours
Alkaline: Approx. 26.0 hours
*These figures will vary depending on the actual conditions of use. Accessories Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22) Options (sold separately) AC adaptor: PSA series SIZE AND WEIGHT Width 73 mm
2-7/8 inches Depth 129 mm
5-1/8 inches Height 59 mm
2-3/8 inches Weight (including battery) 400 g
15 oz * 0 dBu = 0.775 Vrms * The specifications are subject to change without notice.
