Description

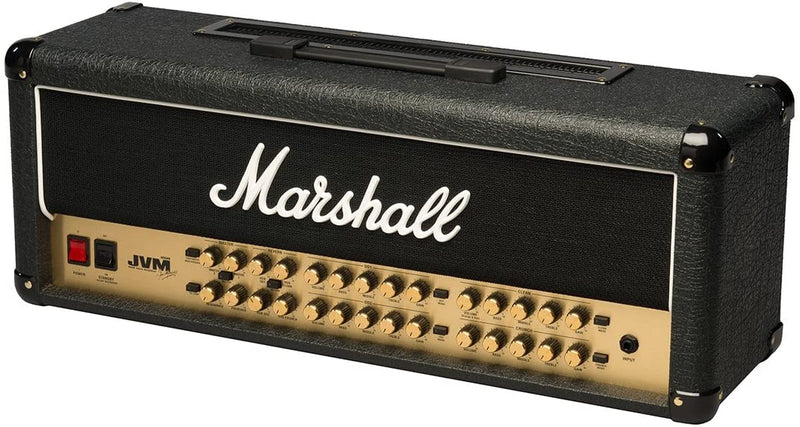

Prepare to craft and innovate in rehearsal to shape the ideal stage sound for you with the 100W JVM410HTM. There are four independent channels, two master volumes and digital reverb so you can transform your sound palette and generate revolutionary sound combinations. The six-channel footswitch can store your favourite combinations and allows you to take your sound wherever you go, ready to perform with any JVM.
GENERAL
Model
JVM410H
Range
JVM
Technology
Valve
Channels
4 (Multi)
ELECTRONICS
Output wattage
100W
Outputs
Speaker outputs: 5 x 1/4" jack sockets (16Ω load / 8Ω load / 4Ω load), Emulated Line Out (XLR), MIDI Thru
Inputs
1 x 1/4" jack instrument input, MIDI In, Footswitch
Controls
Channel and mode select (button), gain (per channel), treble (per channel), middle (per channel), bass (per channel), volume (per channel), reverb (per channel), presence, resonance, master volume select, master volume (switchable for each channel)
Effects
Digital reverb
Effects loop
2, 1 x series parallel, 1 x series
VALVES
Preamp valves
4 x ECC83, 1 x ECC83 (phase splitter)
Power amp valves
4 x EL34
ACCESSORIES
Footswitch
PEDL-91005 included
Cable
Detachable power cable included, speaker cable included
DIMENSIONS (INCLUDING FEET AND HANDLE)
Weight
22 kg / 49 lbs
Width
740 mm / 29.1"
Height
310 mm / 12.2"
Depth
215 mm / 8.5"
