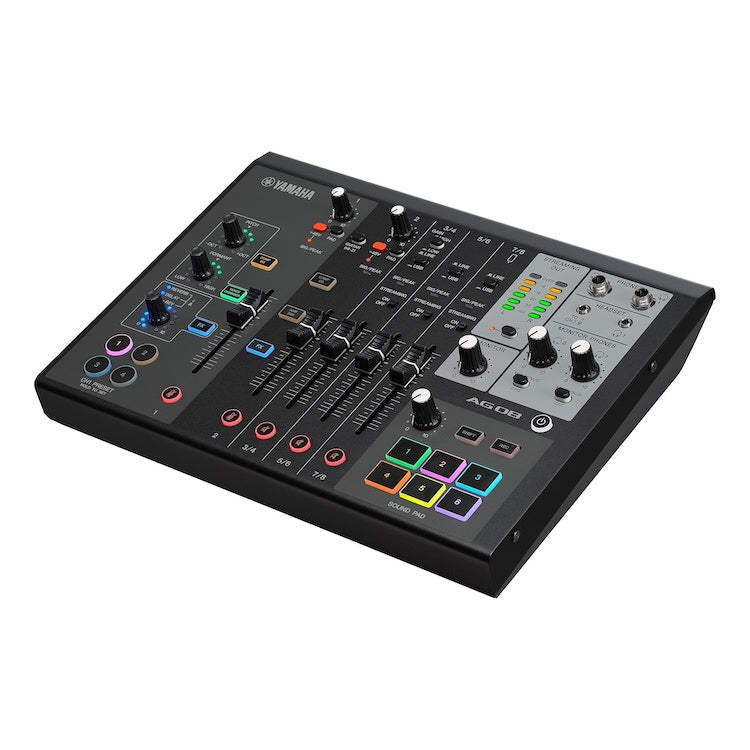

Yamaha AG08 Live Streaming Mixer - Black


Price:
$629.99

Description

Outline
Input Channels    Mono[MIC/LINE]    2 - CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8”) stereo mini (Headset mic, Plug-in power), CH2: Combo (Mic, +48 V phantom power / Guitar input / Line) *CH1 input and Headset mic cannot be used simultaneously
Stereo[LINE]    3 - CH3/4: LR Stereo Phone, CH5/6: LR Stereo RCA/3.5 mm stereo mini (AUX), CH7/8: 4-pole mini in/out (TRRS)
AUX    1 - Stereo mini
Smartphone    1 - 4-pole mini input/output (TRRS)
USB    1 - USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, FROM DAW)
Output Channels    PHONES    2 - CH1: 6.3 mm (1/4") Stereo / HEADSET mini PHONES *Cannot be used simultaneously, CH2: PHONES
Smartphone    1 - 4-pole mini input/output (TRRS)
MONITOR OUT    2 - LR Stereo: XLR, 1/4 TRS Phone
STEREO OUT    1 - MIX: LR Stereo TRS Phone
USB    1 - USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, TO DAW), 8 Channels Direct Out *In Windows environment, ASIO channel and USB 2.0 exist independently. Please check the block diagram for details.
Bus    4 Stereo
Functions    MUTE button x 5, CH1 FX preset button x 4, Sound pad x 6, +48 V phantom power x 2, GUITAR(HI-Z) x 1, PAD x 2, GAIN HIGH/LOW x 1, LINE/USB x 3, STREAMING ON/OFF x 3, CUE x 1, MIX MINUS (CH1, 2)
On-board processors    DSP    Voice Changer, Amp Simulator, COMP, EQ, REVERB (SPX Reverb), Delay, Ducker, Maximizer *Detail is operated on AG Controller
USB    USB Audio    8 IN / 14 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 48 kHz, Bit Depth: 24-bit, Type-C
USB DC Power input    1 - Type-C, 5 V DC, 1.5 A
General specifications
Power requirements    DC 12 V, 1.5 A / USB-C 5 V, 1.5 A
Power consumption    Max. 7.5 W
Dimensions    W    290 mm (11.5")
H    88 mm (3.5")
D    222 mm (8.8")
Net weight    2.2 kg (4.9 lbs)
Included Accessories    AC adapter PA-150B, USB 2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
Others    Operating Temperature: 0 to + 40 ℃
