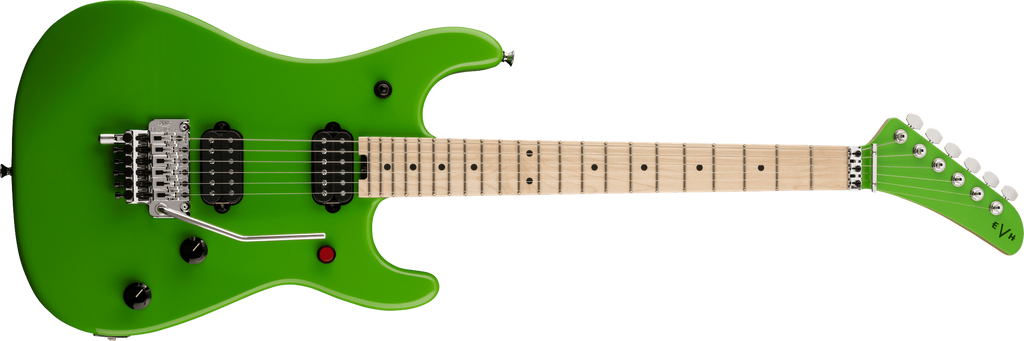

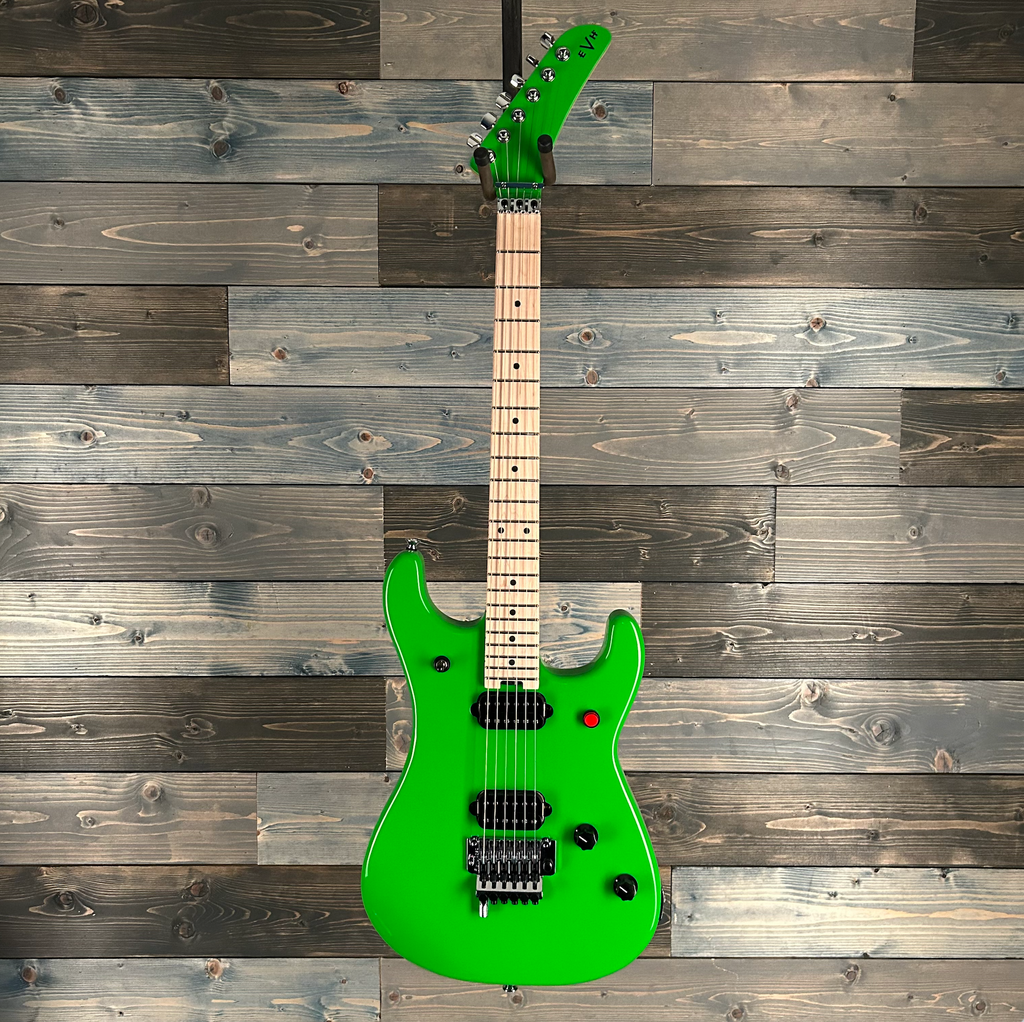

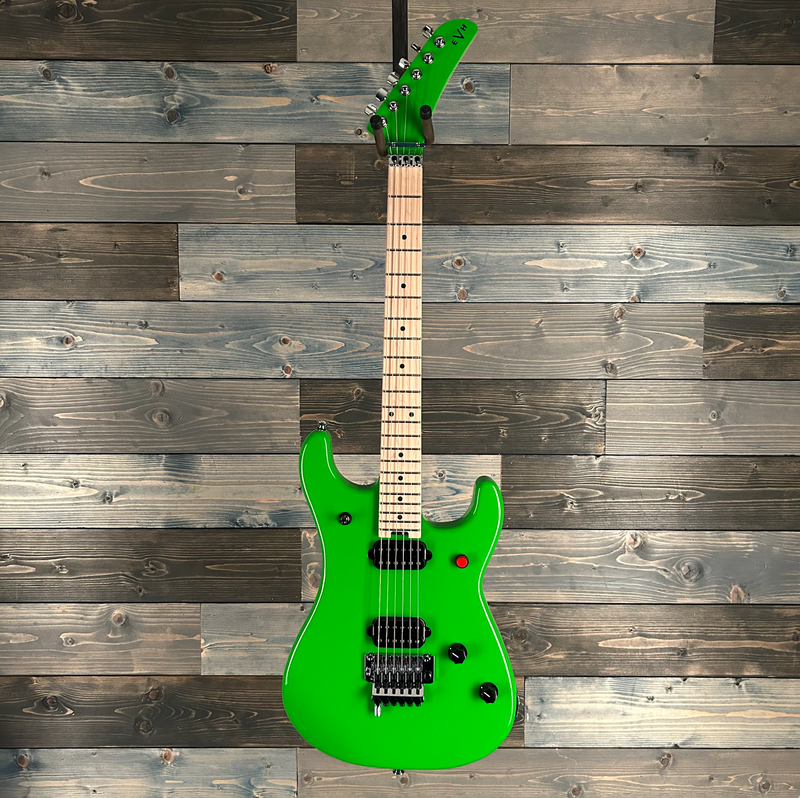

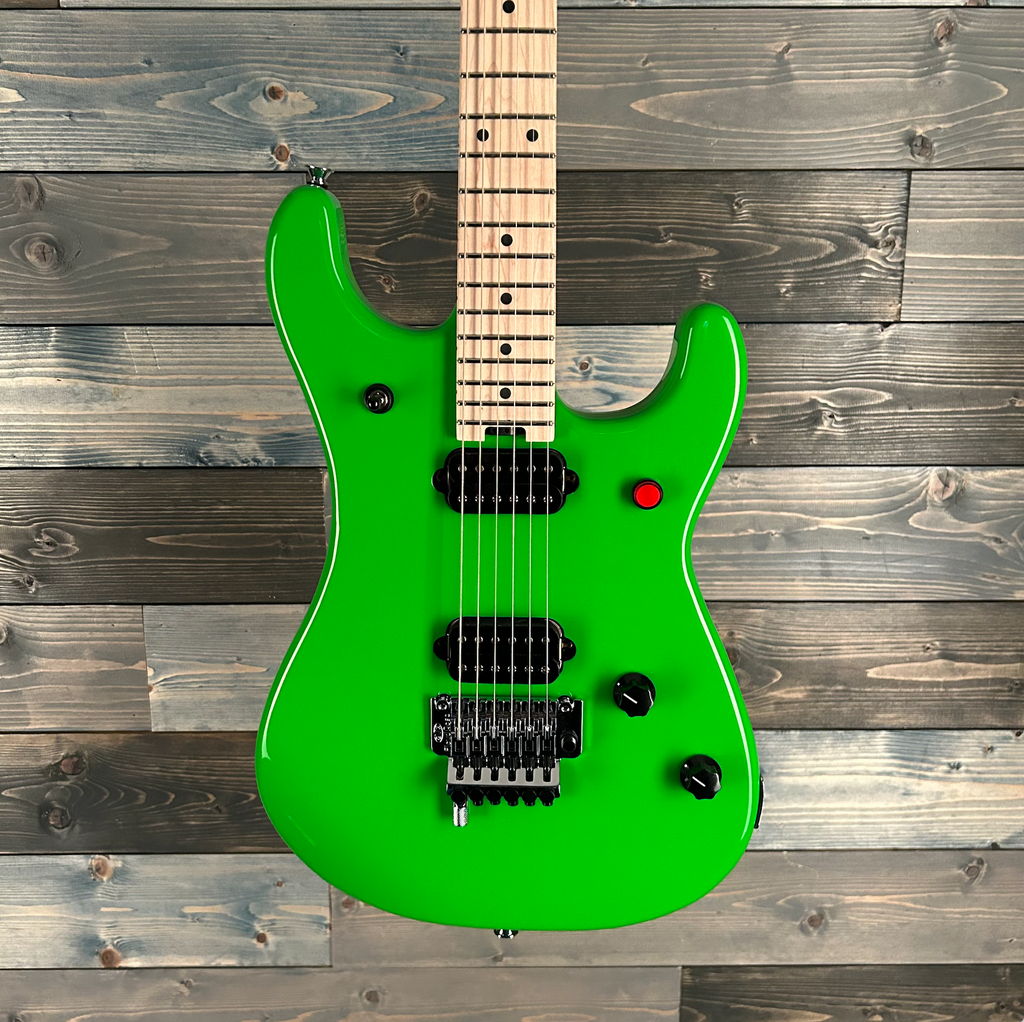

EVH 5150 Series Standard, Maple Fingerboard, Slime Green


Price:
Sale price$1,099.99

Description

Engineered for speed, comfort and full-throttle attitude, the reimagined 5150™ Series Standard is an iconic blast from the past that blends both throwback and modernized features.

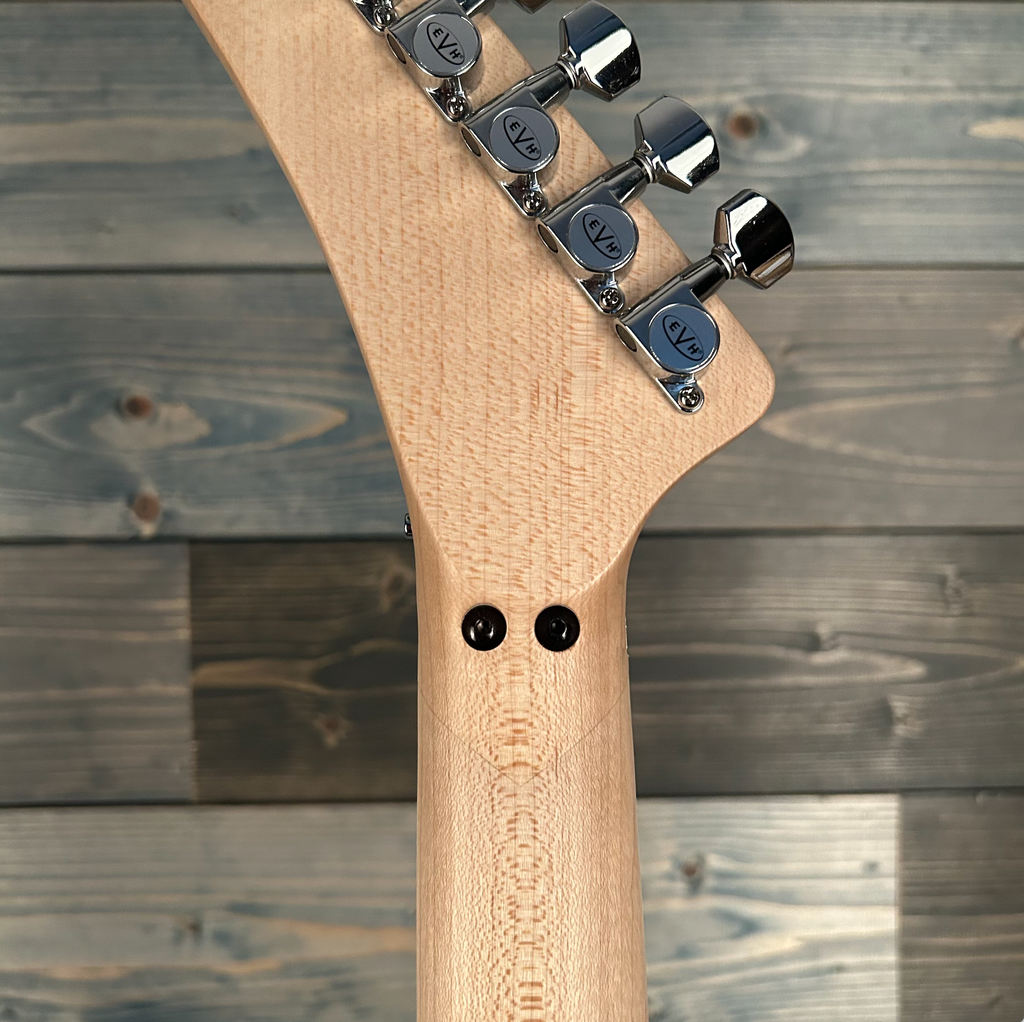

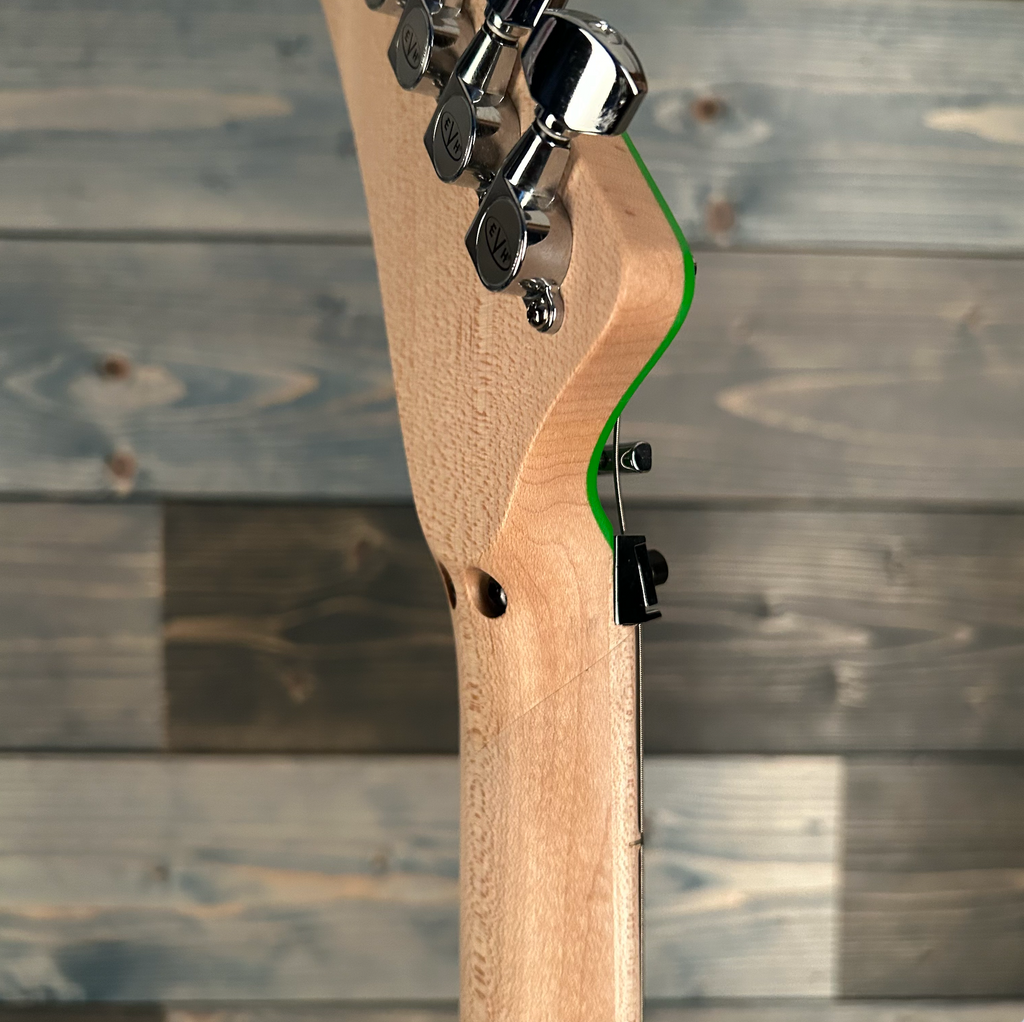

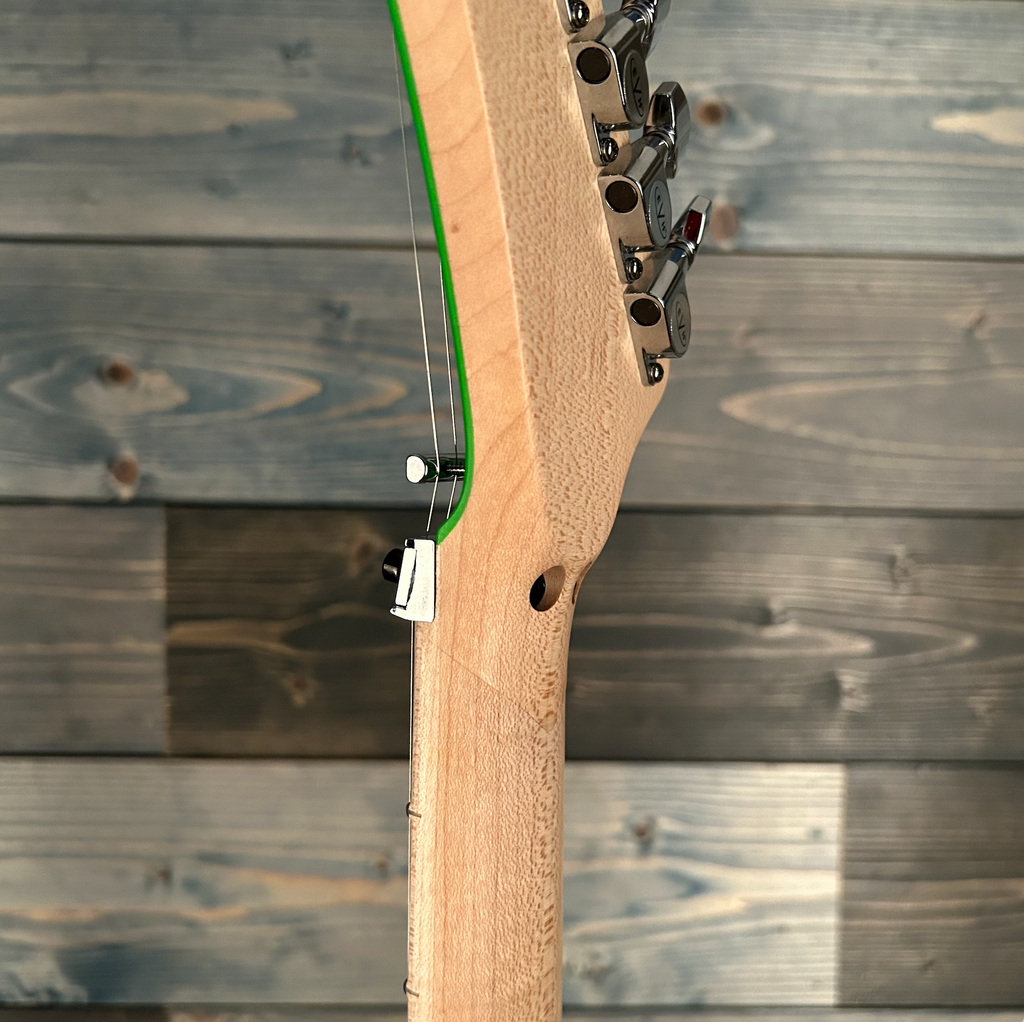

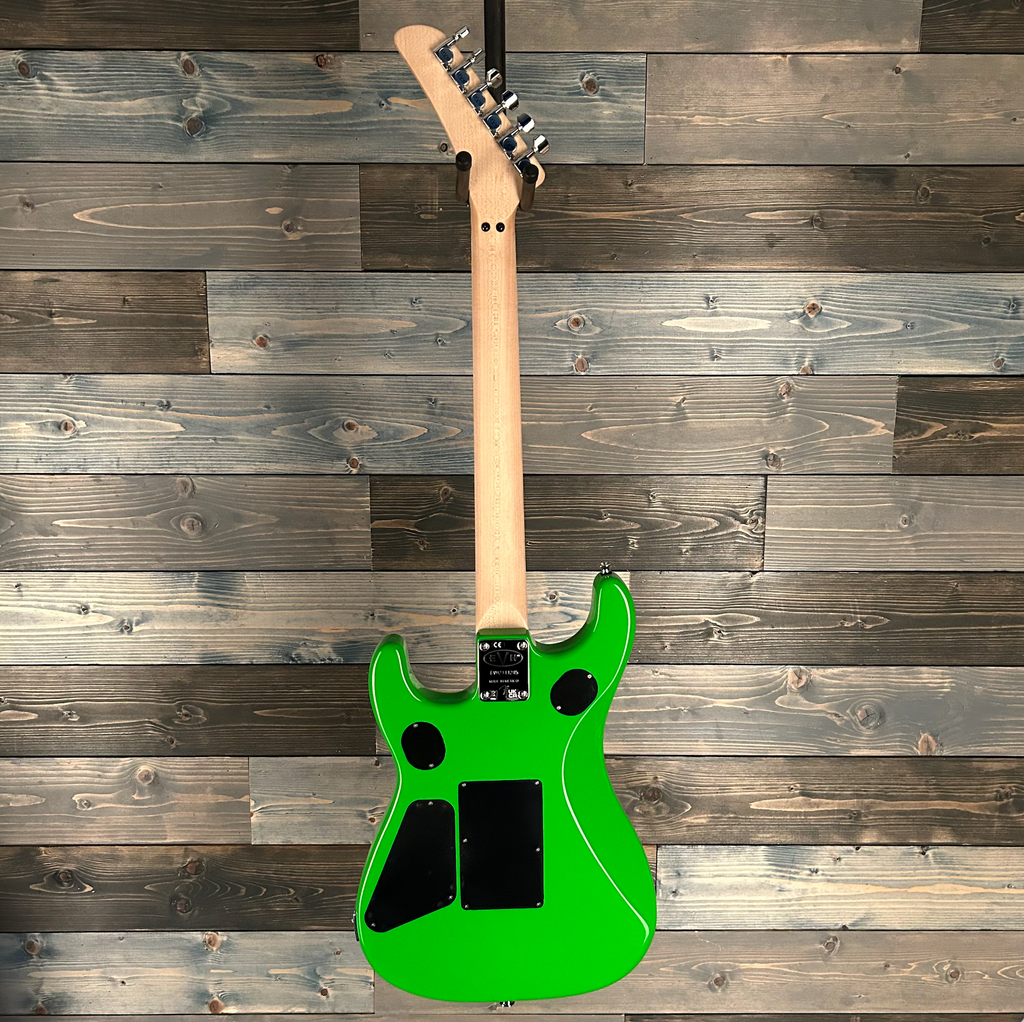

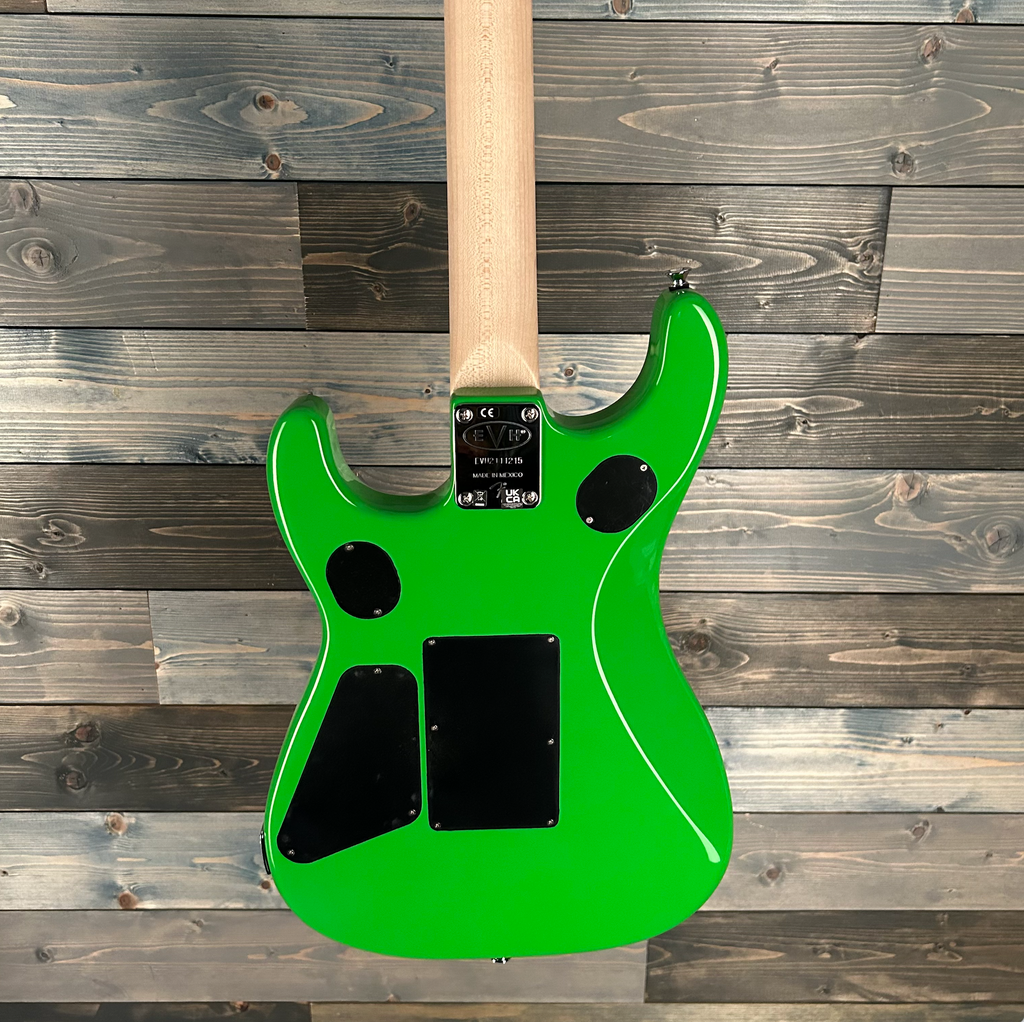

Like its predecessor, the 5150 Standard features a modified Strat®-style basswood body with a deeper upper body curve. The graphite-reinforced bolt-on quartersawn maple neck features a comfortable modified “C” profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and color matched “hockey stick” headstock with EVH® logo decal. Built for smooth and speedy playability, the 12”-16” compound radius maple fingerboard has 22 jumbo frets and black dot inlays.

While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 is outfitted with an HH pickup configuration controlled by a three-way toggle switch on the upper bout. The custom designed EVH® Wolfgang® Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucker neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom designed low friction volume knob creates even-volume tapering for the smoothest volume swells, while the high friction tone knob will stay in place even if accidentally bumped. An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those stutter, rhythmic effects — think “You Really Got Me.”

Decked out with a “dive-bomb” certified EVH-branded top-mount Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna® for switching back and forth from drop-D to standard tuning in an instant.

A high-octane, high performance axe, the 5150 Standard boasts screaming style in a Neon Pink finish with all-chrome hardware, including the EVH-branded Gotoh® tuning machines.

Product Specs
icon specs
General
ColorSlime Green
Country Of OriginMX
OrientationRight-Hand
Series5150™ Series Guitars
icon specs
Neck
Fingerboard MaterialMaple
Fingerboard Radius12"-16" Compound Radius (304.8 mm to 406.4 mm)
HeadstockEVH® Hockey Stick
Neck ConstructionBolt-On with Graphite Reinforcement
Neck FinishHand-Rubbed Satin Urethane
Neck MaterialQuartersawn Maple
Neck ShapeEVH® Modified "C" Backshape
Neck Thickness.790" at 3rd Fret & .810" at 12th Fret
Number of Frets22
Nut MaterialFloyd Rose® R3 Locking
Nut Width1.685" (42.8 mm)
Position InlaysBlack Dot
Side DotsBlack
String NutFloyd Rose® R3 Locking
Truss Rod NutHeel-Mount Truss Rod Adjustment Wheel
icon specs
Body
BodyBasswood
Body FinishGloss Urethane
Body MaterialBasswood
Body Shape5150™
sku-image
icon specs
Hardware
BridgeTop-Mount EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
Control KnobsBlack Knurled with White Indicator
Hardware FinishChrome
Neck Plate4-Bolt Standard
Pickup CoversBlack
Strap ButtonsOversized
String TreesFloyd Rose® Retainer Bar
StringsEVH® Nickel Plated Steel (.009-.042 Gauges)
Switch TipBlack
Tremolo ArmFloyd Rose® 1000 Series Locking
Tremolo BlockBrass
Tuning MachinesEVH®-Branded Gotoh®
icon specs
Electronics
Auxiliary SwitchingKill Switch
Bridge PickupDirect Mount EVH® Wolfgang® Humbucking
ControlsVolume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot)
Neck PickupDirect Mount EVH® Wolfgang® Humbucking
Pickup ConfigurationHH
Switching3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
icon specs
Miscellaneous
Commodity Code9207901000
icon specs
Accessories
Included AccessoriesTremolo Arm, Hex Keys & User Manual
Truss Rod Wrench2.5 mm Hex
icon specs
Measurements
Dimensions4.50x15.20x42.10 IN
Fret SizeJumbo
Scale Length25.5" (648 mm)
Shipping Height4.50 IN
Shipping Length42.10 IN
Shipping Weight11.45 LB
Shipping Width15.20 IN
