Description

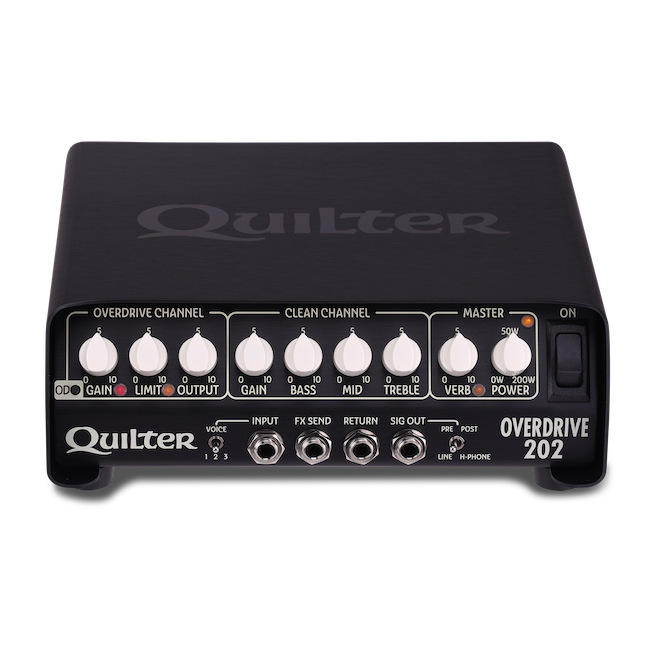

The OverDrive 202 picks up where the Overdrive 200 left off and features three new voices with their own overdrive channel, reverb, limiter, and a cabinet simulated line out. The three voices range from the newly enhanced Quilter classic Full Q on voice 1, the "bell-like" harmonically rich voice 2, through to the incisive and full bodied attack of voice 3. The Overdrive 202 delivers an appropriate voice for any musical setting. Combine with a UFC-3 and BlockDock 12 HD for the ultimate grab and go rig.
Features 3 voicings, two controllable channels, nine powerful controls including a Limiter that works on both channels, master Reverb, FX Loop with “stealth input” for tracks, pre/post signal and headphone jack with internal cab-sim, traditional Quilter warmth that wakes up any good speaker, and our latest 200W power platform with “go anywhere” AC voltage compatibility. On the rear: RJ-45 footswitch jack, dual-impedance 4 and 8 ohm speaker jacks, and locking AC cord IEC inlet.
SPECIFICATIONS
Title Specification
Power Output: 0 to 200 watts, 4-8 ohms
AC Power Req.: 100-240Vac, 50-60Hz, 300W maximum
Input Connections: 1/4" mono, 2meg impedance.
Effects Loop: 1V full scale, 1K Send impedance, 47K Return impedance.
Signal Out (Front): TRS, switchable, Line Out pre-Master +4dB balanced, or Headphone post-Master.
Speaker 1 Output: 8 ohms, 200 W minimum recommended rating
Speaker 2 Output: 4 ohms, 200 W minimum recommended rating
Dimensions: Height: 2.5” + 0.4” rubber feet (6.35cm + 1cm rubber feet) Width: 8.6” (21.8cm) Depth: 7.3” (18.5cm)
Weight: 4 lbs (1.8kg)
