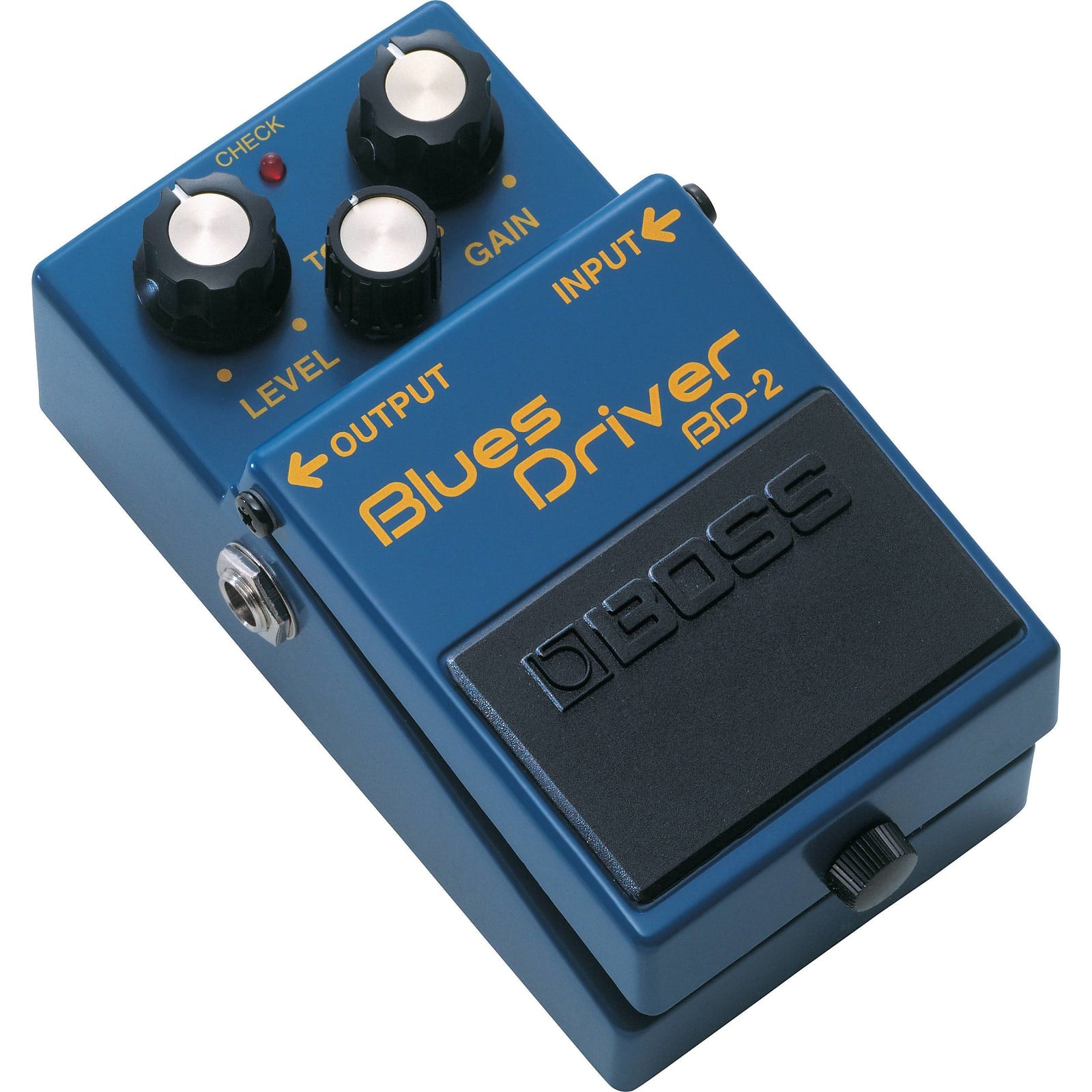

Boss BD-2 Blues Driver Pedal

THE PERFECT TONE FOR BLUES

The BD-2 Blues Driver delivers the creamy, yet crunchy sound associated with great blues guitar. This popular pedal provides instant access to the kind of warm overdrive and emotive distortion usually reserved for 30-year-old tube amps.

Nominal Input Level -20 dBu Input Impedance 1 M ohm Nominal Output Level -20 dBu Output Impedance 1 k ohm Recommended Load Impedance 10 k ohms or greater Controls Pedal switch
GAIN knob
TONE knob
LEVEL knob Indicator CHECK indicator (Used for indication of check battery) Connectors INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack Power Supply Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately) Current Draw 20 mA Expected battery life under continuous use Carbon: Approx. 24.5 hours
Alkaline: Approx. 44 hours
*These figures will vary depending on the actual conditions of use. Accessories Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22) Option (sold separately) AC adaptor (PSA series) SIZE AND WEIGHT ( INCL. BATTERY ) Width 73 mm
2-7/8 inches Depth 129 mm
5-1/8 inches Height 59 mm
2-3/8 inches Weight 360 g
13 oz * 0 dBu = 0.775 Vrms *The specifications are subject to change without notice.

•
