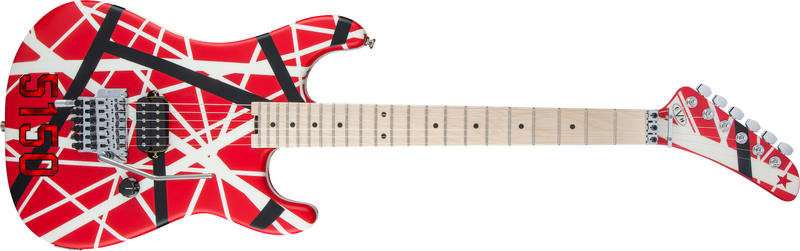

EVH Striped Series 5150, Maple Fingerboard, Red with Black and White Stripes

When Eddie Van Halen introduced his famous red, white and black striped 5150™ guitar in 1984, he never would have fathomed the thousands of copies it would inspire. But then again, Eddie has made a career of being copied in every which way imaginable. EVH proudly introduces a new Striped Series 5150 model based on his original instrument, featuring his distinctively striped 5150 motif and single humbucker setup.

The Striped Series 5150 has a basswood body identical to the original, with a bolt-on quartersawn maple neck featuring a comfortable modified “C” profile, hand-rubbed satin urethane finish on the back and unique “hockey stick” headstock. The fast-playing 12"-16" compound radius maple fingerboard has 22 jumbo frets, black dot inlays and a convenient heel-mount truss rod adjustment wheel.

The 5150 is also fitted with a custom-designed EVH® Wolfgang® alnico 2 humbucking bridge pickup, delivering the perfect amount of power and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. A custom designed EVH-branded low-friction volume knob provides for unmatched performance and even-volume tapering for the smoothest volume swells.

Decked out with a rock solid “dive bomb” certified EVH-branded Floyd Rose® bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna® for switching back and forth from drop-D to standard tuning in an instant.

With its quintessential red 5150 hologram numbers and star decals, the Striped Series 5150 is a high-powered, high-performance machine that’s as kickass to look at as it is to play.

Product Specs
icon specs
General
ColorR/B/W "5150" Striped Pattern
Country Of OriginMX
OrientationRight-Hand
SeriesStriped Series
icon specs
Neck
Fingerboard MaterialMaple
Fingerboard Radius12"-16" Compound Radius (304.8 mm to 406.4 mm)
HeadstockEVH® Hockey Stick
Neck ConstructionBolt-On with Graphite Reinforcement
Neck FinishHand-Rubbed Satin Urethane
Neck MaterialQuartersawn Maple
Neck ShapeEVH® Modified "C" Backshape
Neck Thickness.790" at 3rd Fret & .810" at 12th Fret
Number of Frets22
Nut MaterialFloyd Rose® R3 Locking
Nut Width1.685" (42.8 mm)
Position InlaysBlack Dot
String NutFloyd Rose® R3 Locking
Truss RodEVH®-Branded with Wheel
Truss Rod NutHeel-Mount Truss Rod Adjustment Wheel
icon specs
Body
BodyBasswood
Body FinishGloss Urethane
Body MaterialBasswood
Body Shape5150™
sku-image
icon specs
Hardware
BridgeEVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
Bridge Mounting2-Point Modern
Control KnobsBlack Knurled with White Indicator
Hardware FinishChrome
Neck Plate4-Bolt Standard
Pickup CoversBlack
Strap ButtonsOversized
String TreesFloyd Rose® Retainer Bar
StringsEVH® Nickel Plated Steel (.009-.042 Gauges)
Tremolo ArmFloyd Rose® 1000 Series Locking
Tremolo BlockBrass
Tuning MachinesEVH®-Branded Gotoh®
icon specs
Electronics
Bridge PickupDirect Mount EVH® Wolfgang® Humbucking
ControlsVolume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit
Pickup ConfigurationH
SwitchingNone
icon specs
Miscellaneous
Commodity Code9207901000
DisclaimerWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
icon specs
Accessories
Included AccessoriesTremolo Arm, Hex Keys & User Manual
Truss Rod Wrench2.5 mm Hex
icon specs
Measurements
Dimensions4.50x15.50x33.50 IN
Fret SizeJumbo
Scale Length25.5" (648 mm)
Shipping Height4.50 IN
Shipping Length33.50 IN
Shipping Weight11.25 LB
Shipping Width15.50 IN
