Description
With a career of being copied, the EVH Striped Series guitars put Eddie Van Halen's historic and authentic style in your hands ... These are high powered, high-performance machines as kickbutt to look at as they are to play.

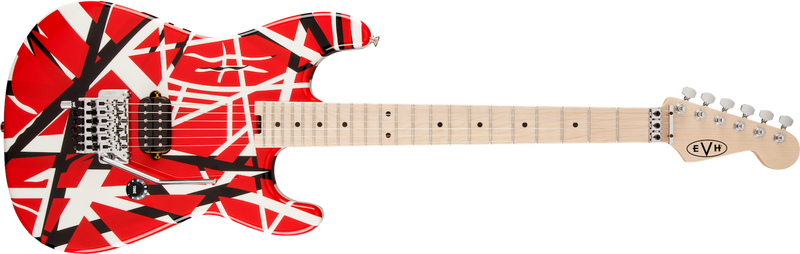

The Striped Series guitar features a basswood Stratocaster®-style body decked out in Eddie's famed striped graphics — Red with Black Stripes, Black with Yellow Stripes and White with Black Stripes.
These unique guitars also have a graphite-reinforced bolt-on quartersawn maple neck with a hand-rubbed oil finish on the back, 12"-16" maple fingerboard with 22 jumbo frets and black dot inlays and a thumbwheel truss rod adjustment wheel for convenient neck relief tweaks.
Powered by a single ferocious direct-mount Wolfgang® humbucking bridge pickup, the Striped Series guitars also feature a single skirted Strat-style volume control knob (labeled "tone") that houses a 500K EVH® Bourns® low friction pot with treble bleed circuit, single-ply black pickguard (White with Black Stripes model only), bar string retainer and Floyd Rose® locking nut, EVH-branded Floyd Rose® locking tremolo with EVH D-Tuna®, EVH die-cast tuners, chrome hardware, vintage-style strap buttons, EVH neck plate and licensed Fender® Strat® headstock. The White with Black Stripes model also features a top-mount output jack.
Product Specs
General
ColorRed with Black Stripes
Country Of OriginMX
OrientationRight-Hand
SeriesStriped Series
Neck
Fingerboard MaterialMaple
Fingerboard Radius12"-16" Compound Radius (304.8 mm to 406.4 mm)
HeadstockLicensed Fender® Stratocaster®
Neck ConstructionBolt-On with Graphite Reinforcement
Neck FinishHand-Rubbed Satin Urethane
Neck MaterialQuartersawn Maple
Neck ShapeEVH® Modified "C" Backshape
Neck Thickness.790" at 3rd Fret & .810" at 12th Fret
Number of Frets22
Nut MaterialFloyd Rose® R3 Locking
Nut Width1.6875" (42.86 mm)
Position InlaysBlack Dot
String NutFloyd Rose® R3 Locking
Truss Rod NutHeel-Mount Truss Rod Adjustment Wheel
Body
BodyBasswood
Body FinishGloss Urethane
Body MaterialBasswood
Body ShapeOther
Hardware
BridgeEVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
Control KnobsBlack Stratocaster®-Style Skirt (Labeled "Tone")
Hardware FinishChrome
Neck Plate4-Bolt Standard
Pickup CoversBlack
Strap ButtonsOversized
String TreesFloyd Rose® Retainer Bar
StringsEVH® Nickel Plated Steel (.009-.042 Gauges)
Tremolo ArmFloyd Rose® 1000 Series Locking
Tremolo BlockBrass
Tuning MachinesEVH®-Branded Gotoh®
Electronics
Bridge PickupEVH® Wolfgang® Humbucking
ControlsVolume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit
Pickup ConfigurationH
SwitchingNone
Miscellaneous
Commodity Code9207901000
Accessories
Included AccessoriesTremolo Arm, Hex Keys & User Manual
Truss Rod Wrench2.5 mm Hex
Measurements
Dimensions3.40x14.50x41.60 IN
Fret SizeJumbo
Scale Length25.5" (648 mm)
Shipping Height3.40 IN
Shipping Length41.60 IN
Shipping Weight10.70 LB
Shipping Width14.50 IN
