Fishman ToneDEQ Preamp EQ

Save 31%

Price:
Sale price$319.95 Regular price$464.99

Description

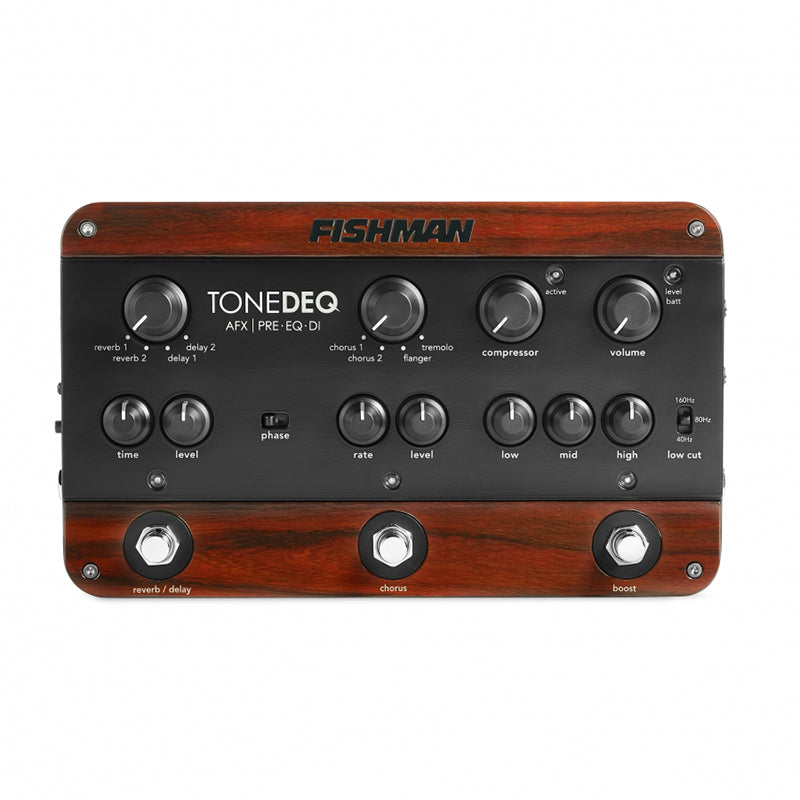

The ToneDEQ Preamp EQ is a complete performance solution for the acoustic musician. With a high-quality preamp, dual effects section, tone controls, a compressor, level booster and a balanced D.I. — it’s got everything you need in one box.

Pure Analog Circuitry
Its analog signal path goes from end to end — from preamp to output — to give acoustic musicians a richer tonal quality. Even the digital effects are mixed in parallel so they don’t affect the purity of your acoustic instrument.

Fully Balanced Stage D.I.

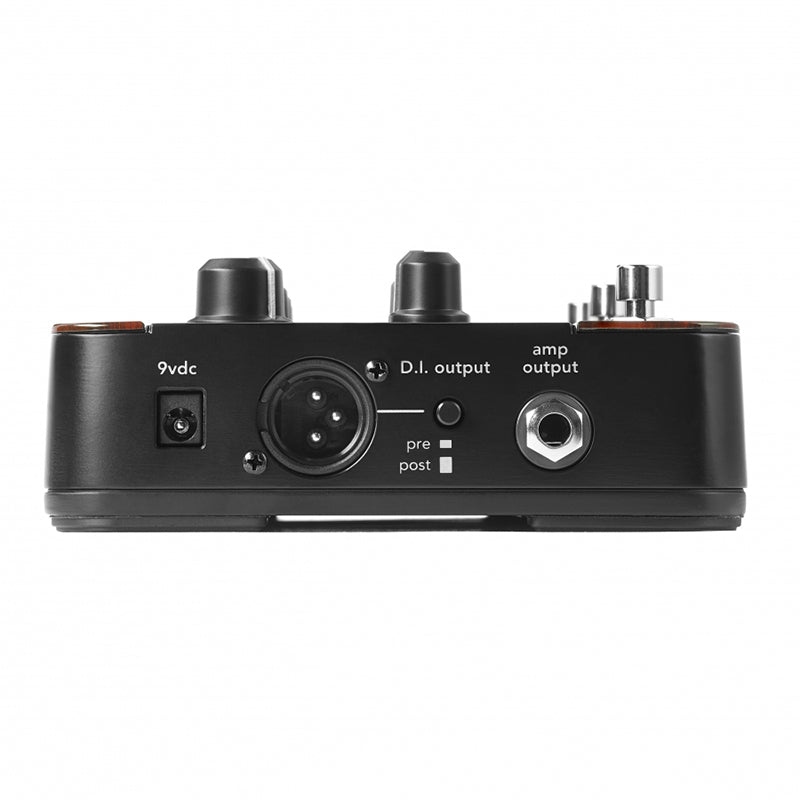

Flexible outputs include a 1/4″ amplifier output and XLR D.I. output for the lowest noise possible. Plus the D.I. features automatic ground-lifting and selectable pre/post EQ settings.

Discrete Class-A Preamp
With Fishman, you get quality discrete class-A signal conditioning created by the leader in instrument preamp design. The high-impedance input is a must when using a passive instrument pickup.

Advanced 4-Band EQ
Legendary 4-band equalizer design provides superior tone control for any acoustic instrument. The variable low-cut filter controls sub-bass effects produced by some passive pickups.

FEATURES & INFO

MODEL NUMBER:

PRO-DEQ-AFX

INPUT:

10M Ohm, discrete class-A JFET design

AUDIO:

All-analog signal path with parallel digital effects

TONE CONTROL:

4-band EQ with Bass, Middle, Treble, and selectable Low Cut

DUAL EFFECTS:

Reverb (2) or Delay (2), Chorus (2), Flanger or Tremolo

DYNAMICS:

Soft-knee Compressor, Boost footswitch (up to 9dB)

FEEDBACK CONTROL:

Selectable Phase invert

AUDIO I/O:

1/4” mono instrument input, 1/4” amplifier output, balanced XLR D.I. output with pre/post routing

DIMENSIONS:

5.36” L x 9.5” W x 2.2” H
(136 mm) (241 mm) (56 mm)

WEIGHT:

2.5 lbs (1.1 kg)

BATTTERY:

Powered by 9-volt battery (not included), or Fishman 910-R power adapter (optional)

BATTERY LIFE:

12 hours

OPTIONAL POWER SUPPLY

FISHMAN REGULATED 9-VOLT POWER:

ACC-BLE-POW
