Description
Body
Body Shape D - Dreadnought
Body Top Solid Sitka Spruce
Top Bracing Pattern Scalloped X
Soundhole Diameter 3 7/8" (98mm)
Rosette ABS Ring
Top Purfling Inlay Black and White ABS
Body Sides Solid African Mahogany

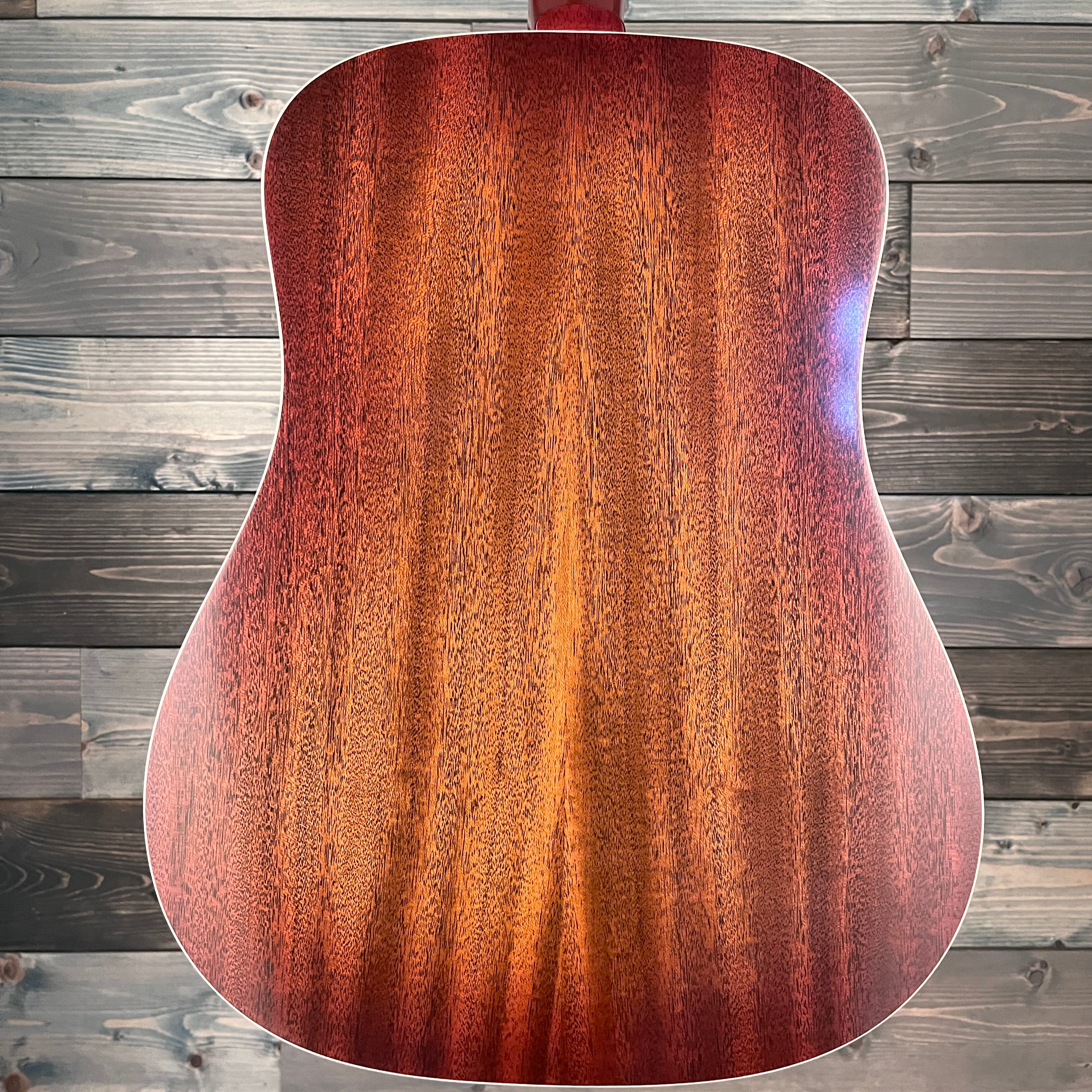

Body Back Solid African Mahogany
Body Binding White ABS
Neck
Neck Material Mahogany
Scale Length 25 5/8" (651mm)
Neck Shape C Shape
Nut Width 1 11/16" (43mm)
Neck Thickness 1st Fret 21mm
Neck Thickness 9th Fret 22.5mm
Truss Rod Dual Action
Truss Rod Wrench 8mm Socket Wrench
Fingerboard Material Indian Rosewood
Fingerboard Radius 12" (305mm)
Fingerboard Inlays 5mm Dots - Pearloid
Fingerboard Inlay Location 3, 5, 7, 9, 12 (x2), 15, 17
Frets Total 20
Fret Type Jescar 43080
Finish
Color Pacific Sunset Burst (PSB)
Finish Vintage Gloss Nitrocellulose Lacquer
Hardware
Bridge Material Indian Rosewood
Bridge String Spacing 2 1/8" (54mm)
Bridge Pins Ivory Colored Plastic
Saddle Material Compensated Bone
Hardware Finish / Plating N / A
Nut Material Bone
Tuning Machines Guild Deluxe Vintage Open Gear with Cream Oval Buttons
Endpin Ivory Colored Plastic
Pickguard Tortoiseshell
Electronics
Electronics N / A
Controls N / A
Other
Strings D'Addario EXP16 - Coated Phosphor Bronze Light (.012 - .053)
Included Case Guild Deluxe Humidified Wood Case
Upper Bout Width 11 5/8" (295mm)
Lower Bout Width 16" (406mm)
Body Depth Upper Bout 4" (101mm)
Body Depth Lower Bout 5" (127mm)
Body Length 20" (508mm)
Overall Length 41 3/4" (1061mm)
